Trek Marlin 5 Gen 2 L 29" Biking Bike Lithium Grey

Trek Marlin 5 Gen 2 L 29" Biking Bike Lithium Grey

$860.00 USD
$860.00 USD $860.00 USD
Sale Sold out
Shipping calculated at checkout.
IN167688

The Marlin 5 is a versatile mountain bike that masters all adventures - both in everyday life and on the trail - with ease. The suspension fork, 2x8 drivetrain and mounting options for a rack and kickstand make it the ideal choice for trail newcomers and for anyone looking for a comfortable, stable commuter bike that scores with the robustness of a true mountain bike.

  • Color:  Lithium grey
  • Product Code : 5255581

*Please note - specification applies to all sizes unless otherwise noted

frameset
*Frame Size: XXS , XS , S
Alpha Silver Aluminum, curved top tube, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5 mm QR axle
Sizes: M , ML , L , XL , XXL
Alpha Silver Aluminum, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5mm QR
*Fork Size: XXS
SR Suntour XCM 30, coil spring, lockout, adjustable spring preload, 100 mm quick release axle, 100 mm travel, 26" wheel
Size: XXS
SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR axle, 100mm travel
Size: XS
SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
Sizes: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR axle, 100mm travel
Max compatible fork travel 100mm (XS & S: 490mm axle to fork crown, M & larger: 509mm axle to fork crown)
impellers
VR hub Formula DC-20, alloy, 6-bolt disc mount, 5x100mm QR
rear hub Formula DC-22, aluminium, 6-bolt disc mount, 8/9/10 freewheel hub by Shimano, 135 x 5 mm QR
HR quick release 152 x 5mm QR axle
rim Bontrager Connection, double wall rim, 32 holes, 20 mm inner width, Schrader valve
*Tires Size: XXS
Bontrager XR2 Comp, wire bead, 30 TPI, 26 x 2.20
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 TPI, 27.5 x 2.20
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 TPI, 29 x 2.20
Max tire size Frame: 29 x 2.20" (XS & S: 27.5 x 2.40"), Fork: To the manufacturer
drive
shifter Shimano Altus M315, 8-speed
derailleur Shimano Altus M315, 34.9mm clamp diameter, top swing, dual pull

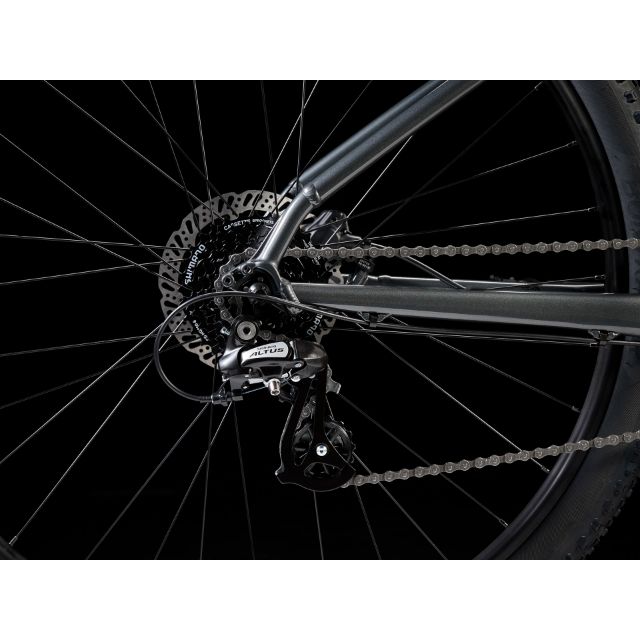

rear derailleur Shimano Altus M310
*Crank Size: XXS
Prowheel TM-CY10, 36/22, 160mm length

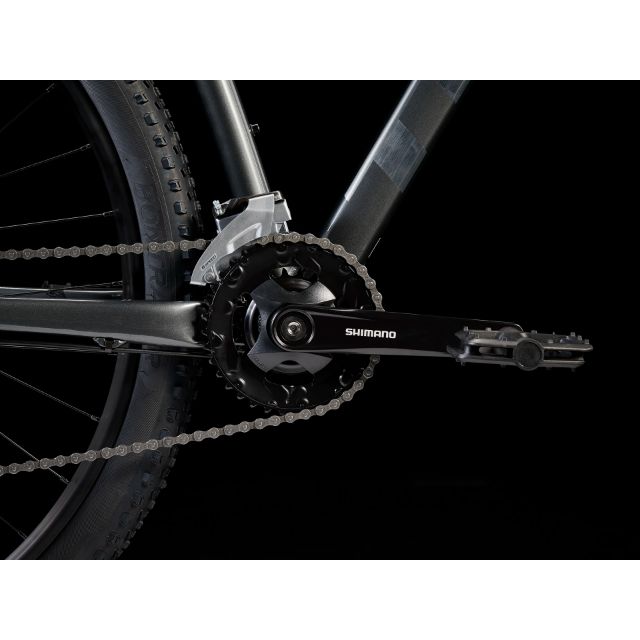

Size: XS , S , M
Shimano M315, 36/22, 170mm length
Size: ML , L , XL , XXL
Shimano M315, 36/22, 175mm length
bottom bracket Sealed cartridge, 73mm
cassette Shimano, 8-speed, 12-32 t.
Chain KMC Z8.3, 8 speeds
Max chainring size 1x/2x: 34 teeth, 3x: 42 teeth
components
saddle Bontrager Arvada, steel stays, 138mm width
*Seat post Size: XXS
Bontrager Alloy, 31.6mm, 12mm offset, 300mm length
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S , M , ML , L , XL , XXL
Bontrager made of aluminum, 31.8 mm, 5 mm rise, 720 mm width
*Stem Size: XXS
Bontrager Aluminum, 31.8mm, Blendr compatible, 7 degree, 35mm length
Size: XS
Bontrager, alloy, 31.8mm, Blendr compatible, 7 deg, 50mm length
Size: S
Bontrager, alloy, 31.8mm, Blendr compatible, 7 degrees, 60mm length
Size: M
Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 70mm length
Size: ML , L
Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 80mm length
Size: XL , XXL
Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 90mm length
tax rate Semi-integrated, 1 1/8"

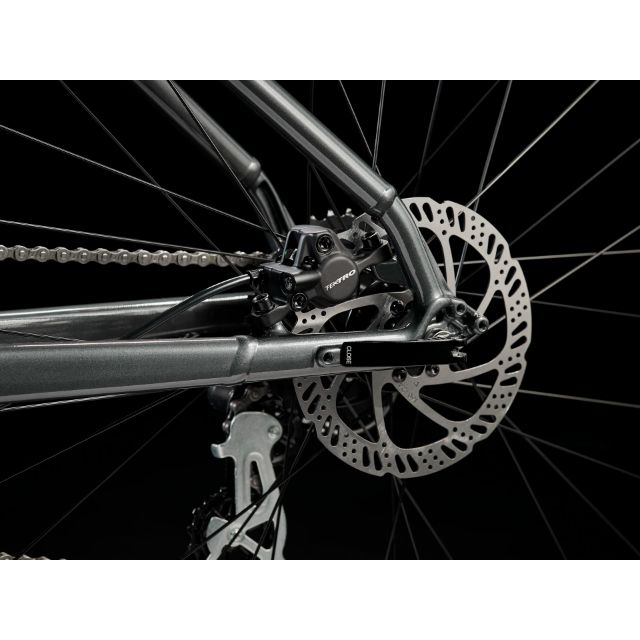

brake Hydraulic disc brake Tektro HD-M275, 180 mm disc diameter
brake set Hydraulic disc brake Tektro HD-M275, 160 mm disc diameter
Weight
Weight M - 13.97kg
Max weight This bike has a maximum weight limit (bike, rider and load) of 136 kg.

Sizeheight of the driverinseamXXS

135-145cm

4'5" - 4'9"

64-68cm

25" - 27"

XS

145-155cm

4'9" - 5'1"

69-73 cm

27" - 29"

S

155-165cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165-176cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

M/L

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177-188cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89-91 cm

35" - 36"

XXL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"

Unless otherwise noted, all dimensions are in cm.


Sizing table
frame size number frame size letter wheel size A — seat tube B — Seat angle Effective seat angle C — head tube length D — steering angle E — Effective top tube F — bottom bracket height G — bottom bracket drop H — chainstay length I — Offset J— Trail K — wheelbase L — standover height M — frame reach N — frame stack
13.5" XXS 26" 34.3 72.8° 72.8° 9 68.6 degrees 54.6 29 5.2 43.8 4.2 8.9 105.2 65.7 36.9 57
13.5" XS 27.5" 34.3 73.5 degrees 73.5 degrees 9 69.3° 54.4 29.2 5.8 43.8 4.2 8.8 104.9 65.8 37.6 56.5
15.5" S 27.5" 36.8 73.5 degrees 73.5 degrees 9 69.3° 55.5 30.2 4.8 43.8 4.2 8.8 106.6 68.6 38.5 57.4
17.5" M 29" 41.9 71.9° 73.0° 9 69.5 degrees 60.2 31 5.8 43.8 4.2 9.3 110 74.8 41.8 60.2
18.5" ML 29" 44.4 71.9° 73.0° 9 69.5 degrees 61.8 31 5.8 43.8 4.2 9.3 111.6 75.8 43.4 60.2
