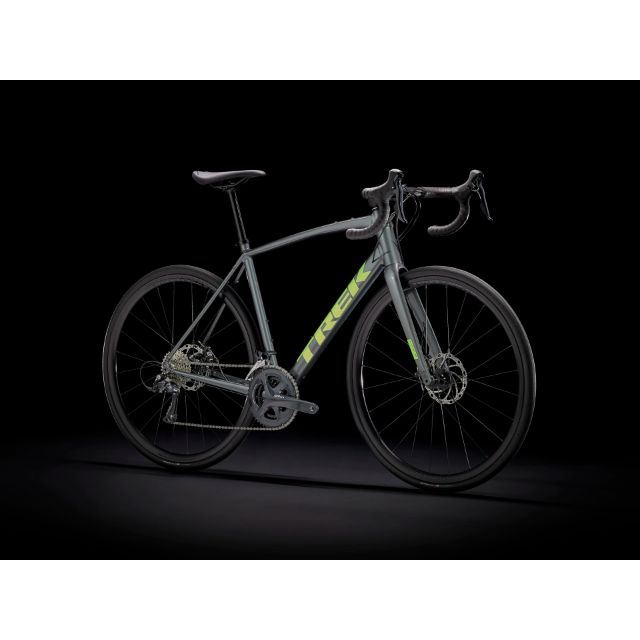

Trek Domane Al 3 Disc 54 Biking Bike Grey/Black
Trek Domane Al 3 Disc 54 Biking Bike Grey/Black
Domane AL 3 Disc is a smooth, stable and super fun road bike. It's a blast on everything from longer loops to group rides and even light gravel trails. The lightweight and comfortable frame features a road-smoothing carbon fork, quality parts and a wide range of gears ready for bigger adventures.
- Color: Grye/Black/Lime
- Product Code : 1045498
*Please note – spec applies to all sizes unless listed separately
Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
---|---|
Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Frame fit | Endurance |
Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
---|---|
Skewer front | Bontrager Switch thru axle, removable lever |
Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
Skewer rear | Bontrager Switch thru-axle, removable lever |
*Rim |
Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve | |
Spokes | 14 g stainless steel, black |
*Tyre |
Size: 44, 49, 52, 54, 56, 58, 61 Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
Size: 44, 49, 52, 54, 56, 58, 61 Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c | |
Max tyre size | 35mm without mudguards, 32mm with mudguards |
Shifter | Shimano Sora R3000, 9-speed |
---|---|
Front derailleur | Shimano Sora R3000, 31.8 mm clamp |
Rear derailleur | Shimano Sora R3000, mid cage, 34T max cog |
*Crank |
Size: 44 Shimano Sora R3000, 50/34 (compact), 165 mm length |
Size: 49, 52, 54 Shimano Sora R3000, 50/34 (compact), 170 mm length | |
Size: 56, 58, 61 Shimano Sora R3000, 50/34 (compact), 175 mm length | |
Bottom bracket | Prowheel PW-BB73+, 68/73 mm, threaded external |
Cassette | Shimano Sora HG400, 11-32, 9-speed |
Chain | Shimano Sora HG53, 9-speed |
Max. chainring size | 1x: 42T, 2x: 50/34 |
Size | Rider Height | Inseam |
---|---|---|
44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
All measurements provided in cm unless otherwise stated.
Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Stem length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
44 cm | 700c | 39.0 | 74.6° | 9.5 | 70.3° | 50.7 | 8.0 | 42.0 | 5.3 | 6.6 | 98.3 | 65.7 | 36.0 | 51.0 | 70.0 |
49 cm | 700c | 44.0 | 74.6° | 12.3 | 70.8° | 51.6 | 8.0 | 42.5 | 5.3 | 6.6 | 100.1 | 71.7 | 36.8 | 54.0 | 80.0 |
52 cm | 700c | 47.5 | 74.2° | 14.5 | 71.3° | 53.0 | 8.0 | 42.0 | 5.3 | 5.9 | 100.3 | 73.5 | 37.1 | 56.1 | 90.0 |
54 cm | 700c | 50.0 | 73.7° | 16.0 | 71.3° | 54.2 | 8.0 | 42.0 | 5.3 | 5.9 | 101.0 | 75.4 | 37.4 | 57.5 | 90.0 |
56 cm | 700c | 52.5 | 73.3° | 17.5 | 71.9° | 55.4 | 7.8 | 42.0 | 4.8 | 6.1 | 101.8 | 77.6 | 37.7 | 59.1 | 100.0 |
58 cm | 700c | 54.8 | 73.0° | 19.5 | 72.0° | 56.7 | 7.8 | 42.5 | 4.8 | 6.0 | 102.2 | 79.6 | 38.0 | 61.1 | 100.0 |
61 cm | 700c | 57.6 | 72.7° | 23.5 | 72.1° | 58.6 | 7.5 | 42.5 | 4.8 | 6.3 | 103.8 | 84.2 | 38.5 | 64.6 | 110.0 |
Weight | 56 - 10.30 kg / 22.71 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
