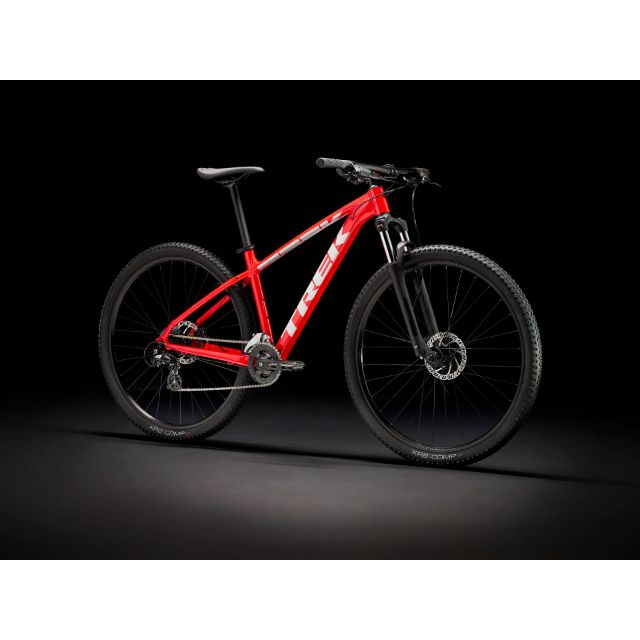

Trek Marlin 5 Gen 2 L 29" Biking Bike Red
Trek Marlin 5 Gen 2 L 29" Biking Bike Red
Regular price
$860.00 USD
Regular price
$860.00 USD
Sale price
$860.00 USD
Unit price
per
Shipping calculated at checkout.
IN173869
The Marlin 5 is a versatile mountain bike that masters all adventures - both in everyday life and on the trail - with ease. The suspension fork, 2x8 drivetrain and mounting options for a rack and kickstand make it the ideal choice for trail newcomers and for anyone looking for a comfortable, stable commuter bike that scores with the robustness of a true mountain bike.
- Color : Red
- Product Code : 5255589
*Please note - specification applies to all sizes unless otherwise noted
frameset
| *Frame |
Size: XXS , XS , S Alpha Silver Aluminum, curved top tube, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5 mm QR axle |
|---|---|
|
Sizes: M , ML , L , XL , XXL Alpha Silver Aluminum, internal cable routing, chainstay disc brake mount, rack mounts, kickstand mount, 135 x 5mm QR | |
| *Gabel |
Size: XXS SR Suntour XCM 30, coil spring, lockout, adjustable spring preload, 100 mm quick release axle, 100 mm travel, 26"" wheel |
|
Size: XXS SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 26"" wheel, 100mm QR axle, 100mm travel | |
|
Size: XS SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 42mm offset for 27.5"" wheel, 100mm QR, 80mm travel | |
|
Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5"" wheel, 100mm QR, 100mm travel | |
|
Sizes: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload adjuster, hydraulic lockout, 46mm offset for 29"" wheel, 100mm QR axle, 100mm travel | |
| Max. more compatible Gabelfederweg | 100mm (XS & S: 490mm axle to fork crown, M & larger: 509mm axle to fork crown) |
impellers
| VR-Nabe | Formula DC-20, alloy, 6-bolt disc mount, 5x100mm QR |
|---|---|
| HR-No | Formula DC-22, aluminium, 6-bolt disc mount, 8/9/10 freewheel hub by Shimano, 135 x 5 mm QR |
| HR quick release | 152 x 5mm QR axle |
| rim | Bontrager Connection, double wall rim, 32 holes, 20 mm inner width, Schrader valve |
| *Tires |
Size: XXS Bontrager XR2 Comp, wire bead, 30 TPI, 26 x 2.20 |
|
Size: XS , S Bontrager XR2 Comp, wire bead, 30 TPI, 27.5 x 2.20 | |
|
Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 TPI, 29 x 2.20 | |
| Max tire size | Frame: 29 x 2.20"" (XS & S: 27.5 x 2.40""), Fork: To the manufacturer |
drive
| shifter | Shimano Altus M315, 8fach |
|---|---|
| derailleur | Shimano Altus M315, 34,9 mm Klemmdurchmesser, Top Swing, Dual Pull |
| rear derailleur | Shimano Altus M310 |
| *Crank |
Size: XXS Prowheel TM-CY10, 36/22, 160mm length |
|
Size: XS , S , M Shimano M315, 36/22, 170mm length | |
|
Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length | |
| bottom bracket | Sealed cartridge, 73mm |
| cassette | Shimano, 8-speed, 12-32 Z. |
| Chain | KMC Z8.3, 8 speed |
| Max chainring size | 1x/2x: 34 teeth, 3x: 42 teeth |
components
| saddle | Bontrager Arvada, steel stays, 138mm width |
|---|---|
| *Seat post |
Size: XXS Bontrager Alloy, 31.6mm, 12mm offset, 300mm length |
|
Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length | |
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Links |
Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
|
Size: S , M , ML , L , XL , XXL Bontrager made of aluminum, 31.8 mm, 5 mm rise, 720 mm width | |
| *Stem |
Size: XXS Bontrager Aluminum, 31.8mm, Blendr compatible, 7 degree, 35mm length |
|
Size: XS Bontrager, alloy, 31.8mm, Blendr compatible, 7 deg, 50mm length | |
|
Size: S Bontrager, alloy, 31.8mm, Blendr compatible, 7 degrees, 60mm length | |
|
Size: M Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 70mm length | |
|
Size: ML , L Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 80mm length | |
|
Size: XL , XXL Bontrager Comp, 31 8mm, Blendr compatible, 7 degrees, 90mm length | |
| tax rate | Semi-integrated, 1 1/8"" |
| Brake | Hydraulic disc brake Tektro HD-M275, 180 mm disc diameter |
| Brake Set | Hydraulic disc brake Tektro HD-M275, 160 mm disc diameter |
Weight
| Weight | M – 13,97 kg |
|---|---|
| Max weight | This bike has a maximum weight limit (bike, rider and load) of 136 kg. |
| Size | height of the driver | inseam |
|---|---|---|
| XXS |
135 - 145 cm 4'5"" - 4'9"" |
64 - 68 cm 25"" - 27"" |
| XS |
145 - 155 cm 4'9"" - 5'1"" |
69 - 73 cm 27"" - 29"" |
| S |
155 - 165 cm 5'1"" - 5'5"" |
74 - 78 cm 29"" - 31"" |
| M |
165 - 176 cm 5'5"" - 5'9"" |
79 - 83 cm 31"" - 33"" |
| M/L |
173 - 180 cm 5'8"" - 5'11"" |
81 - 86 cm 32"" - 34"" |
| L |
177 - 188 cm 5'10"" - 6'2"" |
84 - 89 cm 33"" - 35"" |
| XL |
188 - 195 cm 6'2"" - 6'5"" |
89 - 91 cm 35"" - 36"" |
| XXL |
195 - 203 cm 6'5"" - 6'8"" |
91 - 97 cm 36"" - 38"" |
Unless otherwise noted, all dimensions are in cm.
| frame size number | frame size letter | wheel size | A — Sitzrohr | B — Sitzwinkel | Effective seat angle | C — head tube length | D — steering angle | E — Effective top tube | F — bottom bracket height | G — bottom bracket drop | H — chainstay length | I — Offset | J — Trail | K — wheelbase | L — standover height | M — frame reach | N — frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5"" | XXS | 26"" | 34.3 | 72.8° | 72.8° | 9 | 68.6° | 54.6 | 29 | 5.2 | 43.8 | 4.2 | 8.9 | 105.2 | 65.7 | 36.9 | 57 |
| 13.5"" | XS | 27.5"" | 34.3 | 73.5° | 73.5° | 9 | 69.3° | 54.4 | 29.2 | 5.8 | 43.8 | 4.2 | 8.8 | 104.9 | 65.8 | 37.6 | 56.5 |
| 15.5"" | S | 27.5"" | 36.8 | 73.5° | 73.5° | 9 | 69.3° | 55.5 | 30.2 | 4.8 | 43.8 | 4.2 | 8.8 | 106.6 | 68.6 | 38.5 | 57.4 |
| 17.5"" | M | 29"" | 41.9 | 71.9° | 73.0° | 9 | 69.5° | 60.2 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 110 | 74.8 | 41.8 | 60.2 |
| 18.5"" | ML | 29"" | 44.4 | 71.9° | 73.0° | 9 | 69.5° | 61.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5"" | L | 29"" | 47 | 71.9° | 73.0° | 10 | 69.5° | 63.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5"" | XL | 29"" | 52.1 | 71.9° | 73.0° | 12 | 69.5° | 65.9 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63 |
| 23.0"" | XXL | 29"" | 55.9 | 71.9° | 73.0° | 12 | 69.5° | 67.3 | 31.1 | 5.8 | 43.8 | 4.2 | 9.3 | 117.3 | 80.4 | 48 | 63 |
"
